Compact ultrasonic cleaning and rinsing with oscillation.

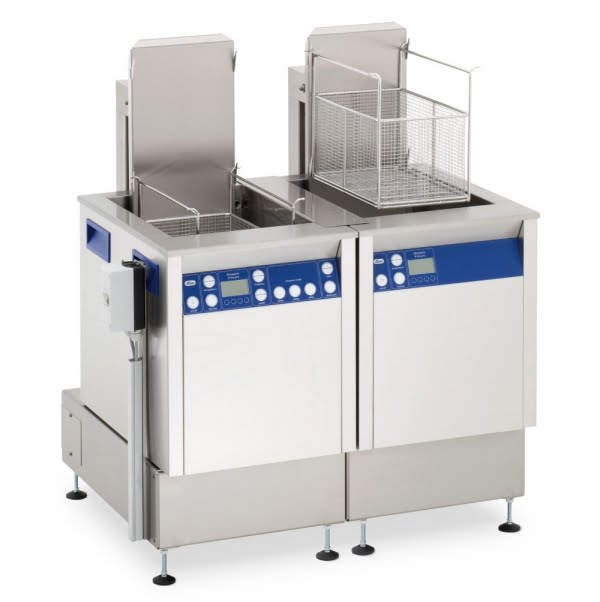

The compact Elmasonic X-tra Line Flex 2 small machine is ideally suitable for cleaning in the workshop area and for reconditioning cleaning. The Flex 2 unit enables multi-frequency ultrasonic cleaning in the first bath and the rinsing in the second bath. An additional shower increases the scavenging efficiency.
A plug-in precleaning unit provides the possibility to use an Elmasteam steam cleaner. Just like Elmasonic X-tra Line Flex 1, five user-defined programs and the Sweep, Pulse and Degas functions are available.
Thus, manual cleaning is possible efficiently and conveniently in even the most cramped space.
Specifications:
| X-tra Line 300 Flex 2 | X-tra Line 550 Flex 2 | X-tra Line 800 Flex 2 | X-tra Line 1200 Flex 2 | X-tra Line 1600 Flex 2 | |
| Ultrasonic frequency (kHz) | 25/45 or 37/130 | 25/45 or 37/130 | 25/45 or 37/130 | 25/45 or 37/130 | 25/45 or 37/130 |
| Max. tank capacity (l) | 32.0 | 55.0 | 84.0 | 112.0 | 167.0 |
| Total power consumption (W) | 2300 | 3900 | 6800 | 9300 | 9500 |
| Unit ext. dimensions W/D/H (mm) | 1000/770/1100 | 1000/940/1200 | 1000/940/1500 | 1450/1070/1500 | 1450/1070/1700 |
| Tank int. dimensions W/D/H (mm) | 327/332/250 | 327/501/295 | 327/501/445 | 519/600/303 | 550/600/456 |
| EKO basket int. dimensions W/D/H (mm) | 248/258/188 | 248/428/224 | 244/424/372 | 436/509/222 | 436/509/372 |
| Weight (kg) | 160.0 | 180.0 | 210.0 | 400.0 | 450.0 |
Download:
- Product Info X-tra line 300 Flex 2, 385 KB
- Product Info X-tra line 550 Flex 2, 385 KB
- Product Info X-tra line 800 Flex 2, 388 KB
- Product Info X-tra line 1200 Flex 2, 274 KB
- Product Info X-tra line 1600 Flex 2, 292 KB
