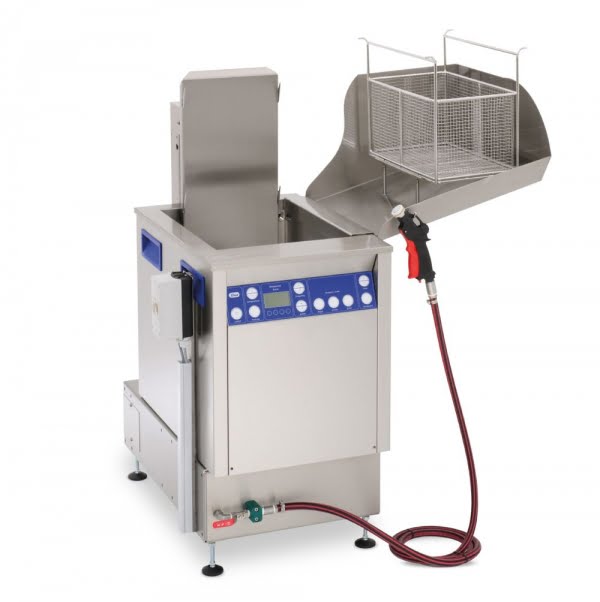

Ultrasonic cleaning with oscillation.
The modular single cleaning station is designed for industrial use and is available in five sizes (300, 550, 800, 1200 and 1600). Equipped with two design variants: Multi-frequency 25/45 kHz (MF2) or 35/130 kHz (MF3) and an oscillation device for the cleaning basket that supports the cleaning effect of the ultrasound and provides a drain position for the stainless steel basket; the Elmasonic X-tra pro modules are ideal for various cleaning tasks.
Up to 5 user-defined cleaning programs can also be created and called up as well as functions such as Sweep, Pulse and Degas. Other product features such as
- ultrasonic bath made of special stainless steel with high cavitation resistance (V4A)
- skimming ledge for optional surface run-off of e.g. oils
- bottom run-off of cleaned sediments (optional) complete the range.
Specifications:
X-tra Line 300 Flex 1 | X-tra Line 550 Flex 1 | X-tra Line 800 Flex 1 | X-tra Line 1200 Flex 1 | X-tra Line 1600 Flex 1 | |
Ultrasonic frequency (kHz) | 25/45 or 37/130 | 25/45 or 37/130 | 25/45 or 37/130 | 25/45 or 37/130 | 25/45 or 37/130 |
Max. tank capacity (l) | 32.0 | 55.0 | 84.0 | 112.0 | 167.0 |
Total power consumption (W) | 2300 | 3900 | 6800 | 9300 | 9500 |
Unit ext. dimensions W/D/H (mm) | 500/770/1100 | 500/940/1200 | 500/940/1500 | 730/1070/1500 | 730/1070/1700 |
Tank int. dimensions W/D/H (mm) | 327/332/250 | 327/501/295 | 327/501/445 | 519/600/303 | 550/600/456 |
EKO basket int. dimensions W/D/H (mm) | 248/258/188 | 248/428/224 | 244/424/372 | 436/509/222 | 436/509/372 |
Weight (kg) | 80.0 | 90.0 | 110.0 | 200.0 | 220.0 |
Download:
- Product Info X-tra line 300 Flex 1, 206 KB
- Product Info X-tra line 550 Flex 1, 238 KB
- Product Info X-tra line 800 Flex 1, 254 KB
- Product Info X-tra line 1200 Flex 1, 254 KB
- Product Info X-tra line 1600 Flex 1, 256 KB
