Protimeter TimberMaster

Measure 150 Wood Species

The Protimeter TimberMaster features eight cali- bration scales, enabling the user to take accurate moisture measurements in 150 wood species from around the world.

Simple Operation

Moisture measurements are commonly taken using the integral pin electrodes. The appropriate wood calibration scale can be selected to ensure the ac- curate measurements are taken.

Temperature Compensation

If the timber being measured is signi cantly above or below 20 degree C (70 degree F) the Protimeter TimberMaster should be used in conjunction with the optional temperature probe. When the probe is connected to the instrument the measured moisture value is automatically corrected for the effect of temperature.

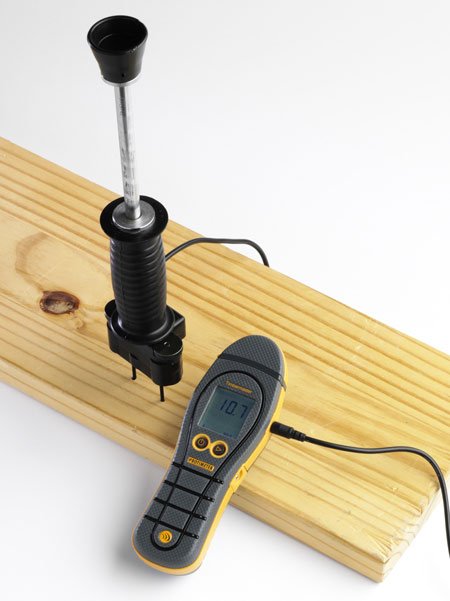

Hammer Electrode

A slide-hammer electrode can be used with the Protimeter TimberMaster to measure sub- surface moisture levels (to a depth of 30mm/13/16”) irrespective of surface moisture levels.

Operating Conditions:

• Operating temperature range: 0°C to 50°C
• Humidity: 0 to 90% RH, non-condensing

Measurement Specifications:

Moisture measurement:

• Pin measurement range (% MC in wood)
• 7.9 to 99% (readings over 30% are relative)

Physical Specifications:

Power:

• 9V- Alkaline 550mAh, Battery low indication on LCD

Size:

• 19cm x 6.5cm x 3.5cm (7.5” x 2.5” x 1.4”)

Gross Weight (without battery):

• ~228g

Maximum Needle Depth:

• For WME pins: 0.4” (10mm)

Buzzer:

• Audible buzzer for key tone and measurement indication, user con gurable

Regulatory Compliance:

• CE, RoHS, ETL

Part Numbers:

• BLD5605 – Supplied with Heavy Duty moisture probe and temperature probe
• BLD5609 – Supplied with Heavy Duty moisture probe

Warranty:

• 2 years
