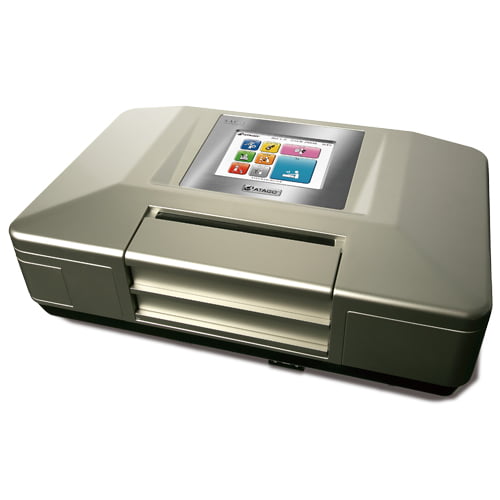

ATAGO Automatic Polarimeter / Saccharimeter SAC-i 589/882
You are here: / / / / ATAGO Automatic Polarimeter / Saccharimeter SAC-i 589/882
ATAGO Automatic Polarimeter / Saccharimeter SAC-i 589/882

ATAGO Automatic Polarimeter / Saccharimeter SAC-i 589/882



From laboratory to the field
A variety of polarimeters
Helps you anywhere!

Polarimeter

SAC-i | AP-300 | Po-1 | POLAX



Category: Tags: , ,



High Performance Sugar Analysis, Now Easier Than Ever.

It has become common that dark color – raw sugar samples are measured at 882nm without decolorization treatment.
SAC-i 589/882 can measure samples at both 589nm and 882nm by changing the optical units.

Dual wavelength
589nm & 882nm



More Info:

https://www.atago.net/product/?l=en&f=products-polarimeter-top.php#DCF39698





Model SAC-i 589/882
Cat.No. 5952
Measurement Readings Angle of Rotation
International Sugar Scale
Specific Rotation
Concentration
Purity
User scale
Angle of Rotation (Temperature Compensation of Quartz Plate)
Temperature (°C / °F)
Range Angle of Rotation:-89.9999 to +90.0000° and -360.0000 to +360.0000°
International Sugar Scale : -259.0000 to +259.0000°Z
Resolution Angle of Rotation : 0.0001°
International Sugar Scale : 0.0001°Z
Accuracy 589nm
①Angle of Rotation：±0.005° （-45.0 to +45.0°）
②International Sugar Scale：±0.015°Z （-130.0 to +130.0°Z）
Other ranges
①Angle of Rotation：±0.010°
②International Sugar Scale：±0.030°Z
* Checked by reading a standard quartz plate

882nm
①Angle of Rotation：±0.005° （-19.3 to +19.3°）
②International Sugar Scale：±0.015°Z （-130.0 to +130.0 °Z）
Other ranges
①Angle of Rotation：±0.010°
②International Sugar Scale：±0.070°Z
* Checked by reading a standard quartz plate
Temperature compensation 10 to 40℃
Measurement Wavelength 589nm (equivalent to the sodium-D line spectrum)
882nm（infrared nearby）
Included Accessories PolariSoft(Software)
Dimensions & Weight 60×36.5×21cm, 20.0kg
Output terminals Digital Printer DP-63 or
DP-AD (sold separately),
Output method : RS-232C (9 pin D-Sub male connector)
USB flash drive and PC – USB





  • Digital Printer DP-63 (Thermal printer) : Cat.No.3118
  • Digital printer DP-AD (Dot matrix printer) : Cat.No.3123
  • Observation tube 50mm OT-50(I) (SUS) 2.5mL : RE-72080
  • Observation tube 100mm OT-100(I) (SUS) 5mL : RE-72078
  • Observation tube 200mm OT-200(I) (SUS) 10mL : RE-72079
  • Jacketed flow tube with funnel 100mm : RE-72113
  • Jacketed flow tube with funnel 200mm : RE-72114
  • Unjacketed flow tube with funnel 100mm : RE-72037
  • Unjacketed flow tube with funnel 200mm : RE-72038
  • Unjacketed small volume observationtube 10mm long : RE-72042
  • Jacketed flow tube 50mm (With water jacket) : RE-72110
  • Jacketed flow tube 100mm (With water jacket) : RE-72111
  • Jacketed flow tube 200mm(With water jacket) : RE-72112
  • Quartz control plate 34°(100°Z) : RE-72045
  • Quartz control plate 17°(50°Z) : RE-72044
  • Quartz control plate 8°(25°Z) : RE-72043
  • Quartz Control Plate -34° (-100°Z) : RE-72050
  • Quartz Control Plate -17° (-50°Z) : RE-72049
  • Quartz Control Plate -8° (-25°Z) : RE-72048
Purchase a quartz plate and a polarimeter as a set and receive a discount (for details, please contact the ATAGO sales department).



  • Printer paper (regular) for Thermal printer : RE-8412
  • Printer paper (long-term storage) for Thermal printer : RE-8414
  • Printer paper for Dot matrix printer : RE-89403
  • Ribbon cassette : RE-89402
